OAK-FFC AR0234 M12

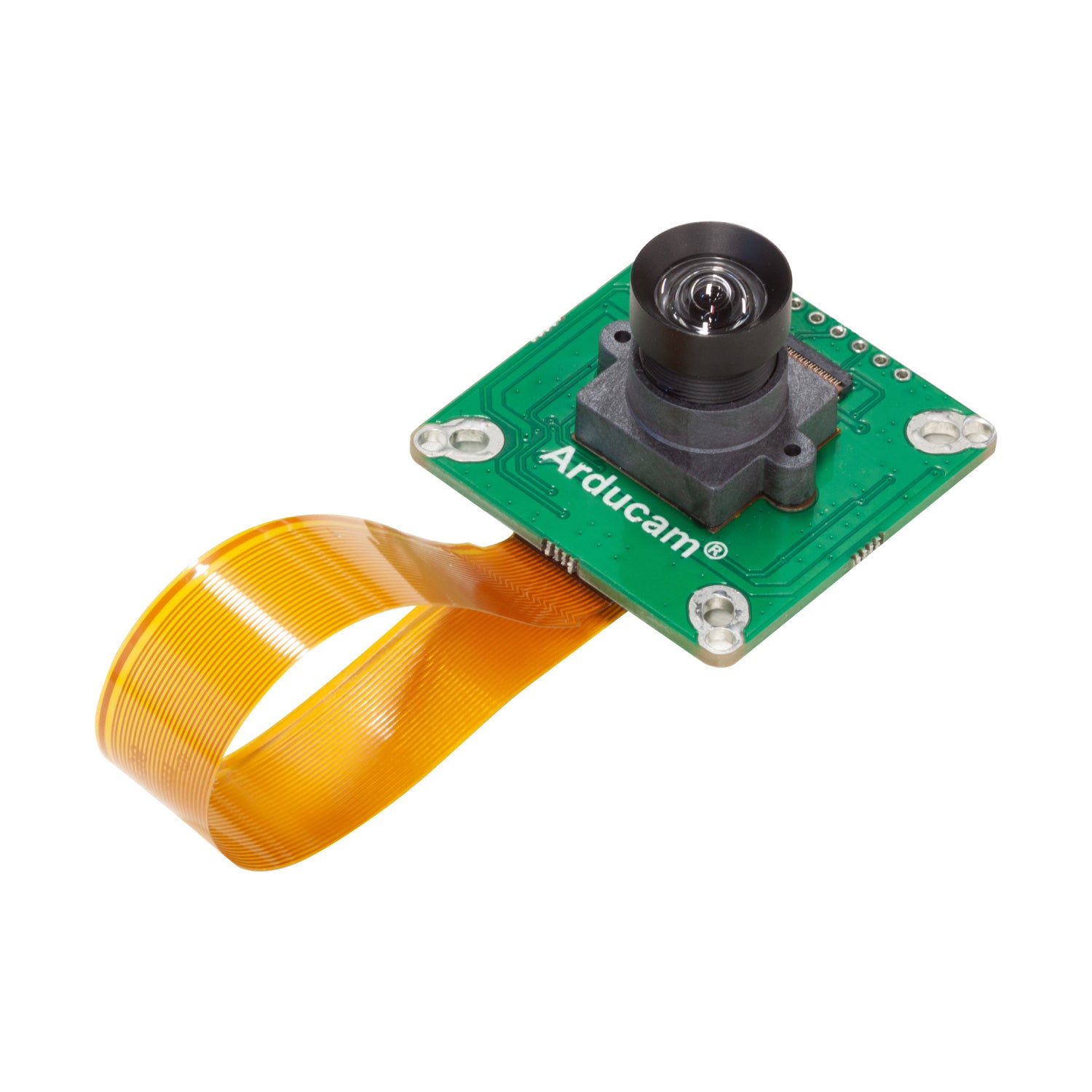

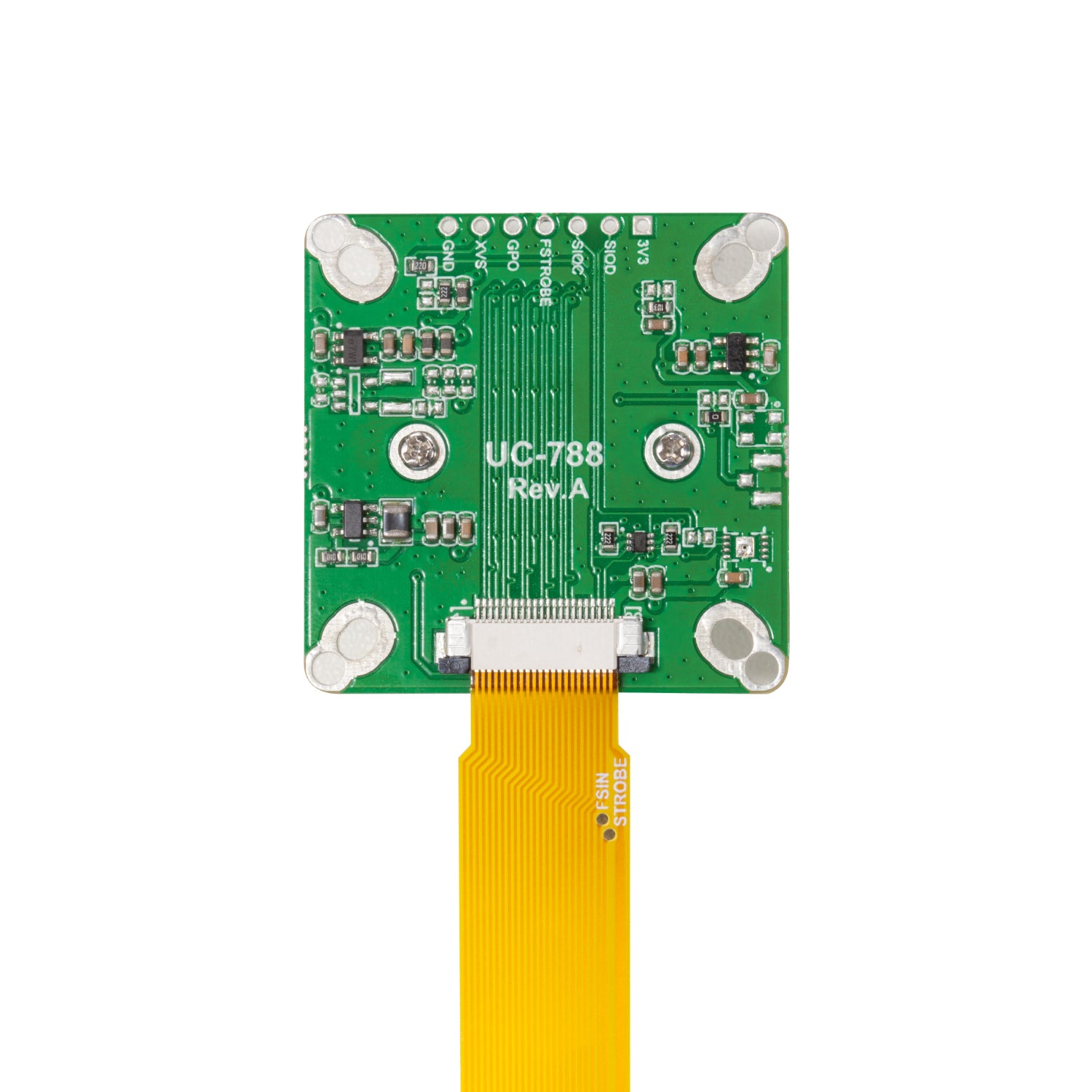

OAK-FFC AR0234 M12 is an OAK FFC camera module designed to work with OAK-FFC 3P, OAK-FFC 4P, and OAK-FFC 6P.
Camera specifications:
|
Sensor |
2.3MP AR0234 |
|
HFOV |
90° |
|
FOV |
120°/90°/75° |
|
Maximum image transfer rate |
920×1200@60fps, with ISP@30fps; 1920×1080@60fps, with ISP@30fps; 1280×720@120fps, with ISP@60fps |
|
Board size |
38 x 38 mm |
Documentation:
See other OAK FFC camera modules.
Package includes:
- OAK-FFC AR0234 M12 camera module
- Flexible flat cable, 15cm
Part numbers:
OAK-FFC AR0234 M12: AR0234
MN: B0368
